Onshore Fire Protection

Approximatley 90% Onshore Fire Pumps are horizontal split case pumps, and 10% Vertical turbine pumps. This is determend by the source of water for the Fire pump. When called to start, a fire pump must have a positive head pressure (water) at the eye of the impeller. The pump then and only then may pull a lift during operation. We can help you determine which design you project requires during design.

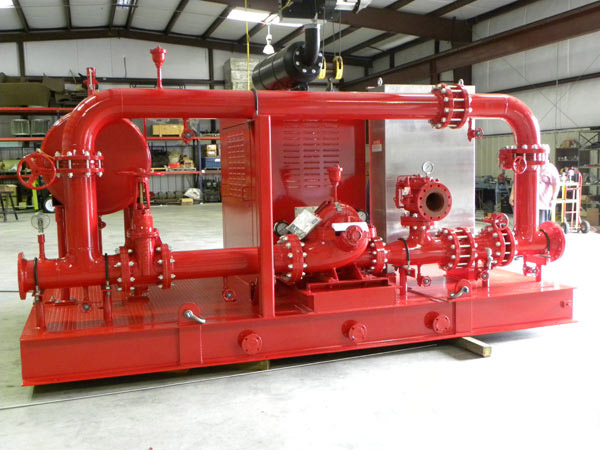

Pump Package Features

We can build our Fire Pump Packages to meet your special requirements the including following:

• Class 1, Divison 2 area classification
• CE Stamped on complete Fire Pump Package
• NFPA #20
• UL Listing, FM Approval
• Air starting
• Electric starting
• Dual starting (Electric and Air)
• Sound attenuation enclosures
• Simplex, Duplex and Triplex configuration, including discharge piping, valves, fittings and flow meter as required
• Sskid mounted house including discharge piping, valves, fittings and flow meter as required
• Blast restistant enclosure

Materials Used

The Horizontal Split Case Pump can be furnsihed in the following materials of construction:

• Cast Iron
• 316 or 316L Stainless Steel
• Ni-Al Bronze
• Duplex and Super Duplex Stainless Steel

The Shaft Materials of construction available are:

• Steel
• 316-316L Stainless Steel
• K-500 Monel

Types of Onshore Fire Pumps

• Engine Driven Horizontal Split Case, UL Listed Fire Pumps (250-7500 Duty Point 10,000 GPM)
• UL listed up to 5000 HP
• Non Listed up to 1600 HP
• Electric motor Driven Horizontal Split Case Fire Pumps (250-7500 GPM)
• UL Listed Low voltage (460 v) up to 400 hp
• UL Listed Pumps up to 800 HP with Non Listed Mediumn voltage (2300 v, & 4160 v)
• Non Listed up to 1500 HP
